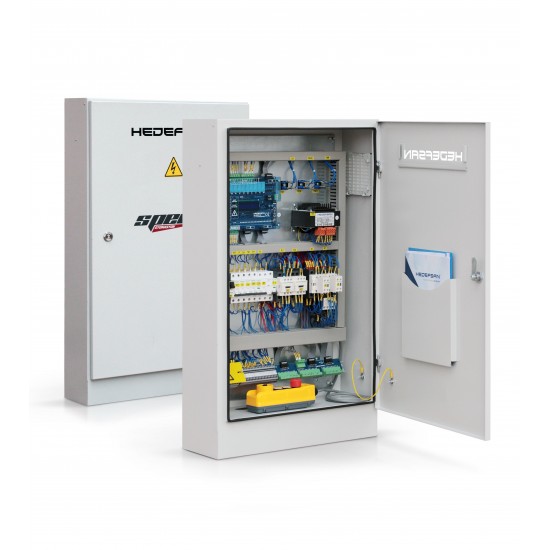

Name: 2 SPEED LIFT CONTROLLER PANEL
Brand: HEDEFSAN
Price: 550.00 USD
Availability: InStock

2 SPEED LIFT CONTROLLER PANEL

Based on 0 reviews. - Write a review

$550.00

Marka: HEDEFSAN
Model: HD-50

Qty

Add to Cart

Request Offer Bilgi Al

Add to Wish List Compare this Product

Description
Reviews

Call buttons and lamps require only one shared wire.

Simple and error fee installation due to included terminals. Economical and Time saving.

Cabin serial communication output.

All parameters can easily be configured via LCD screen and keyboard buttons.

Adjustable parking station and travelling time.

Programming with password protection, code protection against unauthorized using.

Position information by Pulse bi-stable switches.

Adjustable maintenance time, and warning on LCD screen when maintenance is required.

The function of manual movement at low speed by using program buttons.

Short-circuit protected display outputs can be adjusted to every floor.

For lifts that have only one fully automatic door, the floor of the position of the automatic door can be chosen.

The display outputs are changeable to gray-code or binary outputs.

Overload warning signal

At inspection the movement to limit switches or exact floor level can be chosen

Adjustable car lamp time, lock wait time, wait at floor time, max high speed time and max low speed time.

Outputs for direction arrows, Out Of Service signal and busy signal via 5A relay, a signal common input for these outputs.

Related to request, when power returns after a power loss, the car moves to the first floor.

Electronic control of phases, phase order and PTC (Motor temperature), errors of these controls shown via LCD on board, turning off function by choosing the parameters, adjustable phase level sensitivity.

Warning signal on LCD screen when the door is open for a long time or when the stop return circuit is not detected for a long time.
